This custom EPS/Foam CNC Router is engineered for large-scale 3D molds, automotive styling, and architectural sculpture. The combinations of a 6KW air-cooled spindle and a 650mm Z-axis clearance provide a massive working volume optimized specifically for thick non-metallic materials like expanded polystyrene (EPS), styrofoam, EVA foam, and polyurethane.
6KW Air-Cooled Spindle: Delivering high torque at up to 18,000 RPM, it provides rapid material removal on dense foams and soft woods without requiring complex liquid cooling setups.
650mm Extended Z-Axis: Extended gantry clearance allows the machine to accommodate deep block profiles. It prevents tool or gantry collision when machining deep 3D cavities, molds, and statues.
Drive & Transmission Systems: Features high-precision TBI ball screws on the Z-axis to lift the heavy spindle assembly smoothly, while X and Y axes utilize heavy-duty helical rack and pinion systems for high-speed tracking.
Structural Build: Built on an extra-thick, stress-relieved steel gantry and welded machine frame to eliminate resonance during deep-plunge 3D routing.
| Parameters |
Specification |
| XYZ working area |
1300*2500*650mm, 4*8ft |
| Optional working area |
1500*3000*650mm, 5*10ft
2000*3000*650mm, 6*10ft
2000*4000*650mm, 6*13ft |
| Lathe Structure |
Annealing heavy-duty structure |
| Guide |
Original Germany ROUST |
| Z Structure |
Original TAIWAN TBI Ball Screw transmission |
| Traveling Positioning Accuracy |
±0.05/300m |
| Repositioning Positioning Accurac |
±0.05 |
| Table |
T-slot aluminum plus PVC working table |
| Max. Speed |
25000mm/min |
| Max. Working Spee |
20000mm/min |
| Spindle Power Motor |
6KW air cooling Spindle |
| Spindle Speed |
18000RPM |
| Drive Mode |
Leadshine AC servo motors and drivers |
| Reducer |
High precision planetary reducer |
| Lubrication system |
Automatic lubrication system |
| Working Voltage |
380V/50Hz/3P or 220V/50HZ/1P |
| Command |
G Code, *uoo, *mmg, *plt |
| Operating System |
Original NC STUDIO 3 axis controller |
| Collet |
ER32 |
| Tool diameter |
3.175-12.7mm |
| Tool setting |
ATC tool sensor |
| Software |
Type3/Artcam |
| Dust cleaning system |
Spindle cover+dust collector+pipe+bag |
| Weight |
1800KG |
INDUSTRIES
Casting mold industry: It can be used for the precision production of various cast wood molds for various automobiles, ships, aviation, trains, etc. And also be used for research and development and production of automotive interior decoration and exhibition decoration materials.
Casting and sculpture industry: Processing and engraving of various casting process products, lost foam, exhibition decoration materials, and GRG decoration materials.
Building decoration industry: Processing and production of building decoration materials such as GRG and GRC.
Product Tags:
|
|

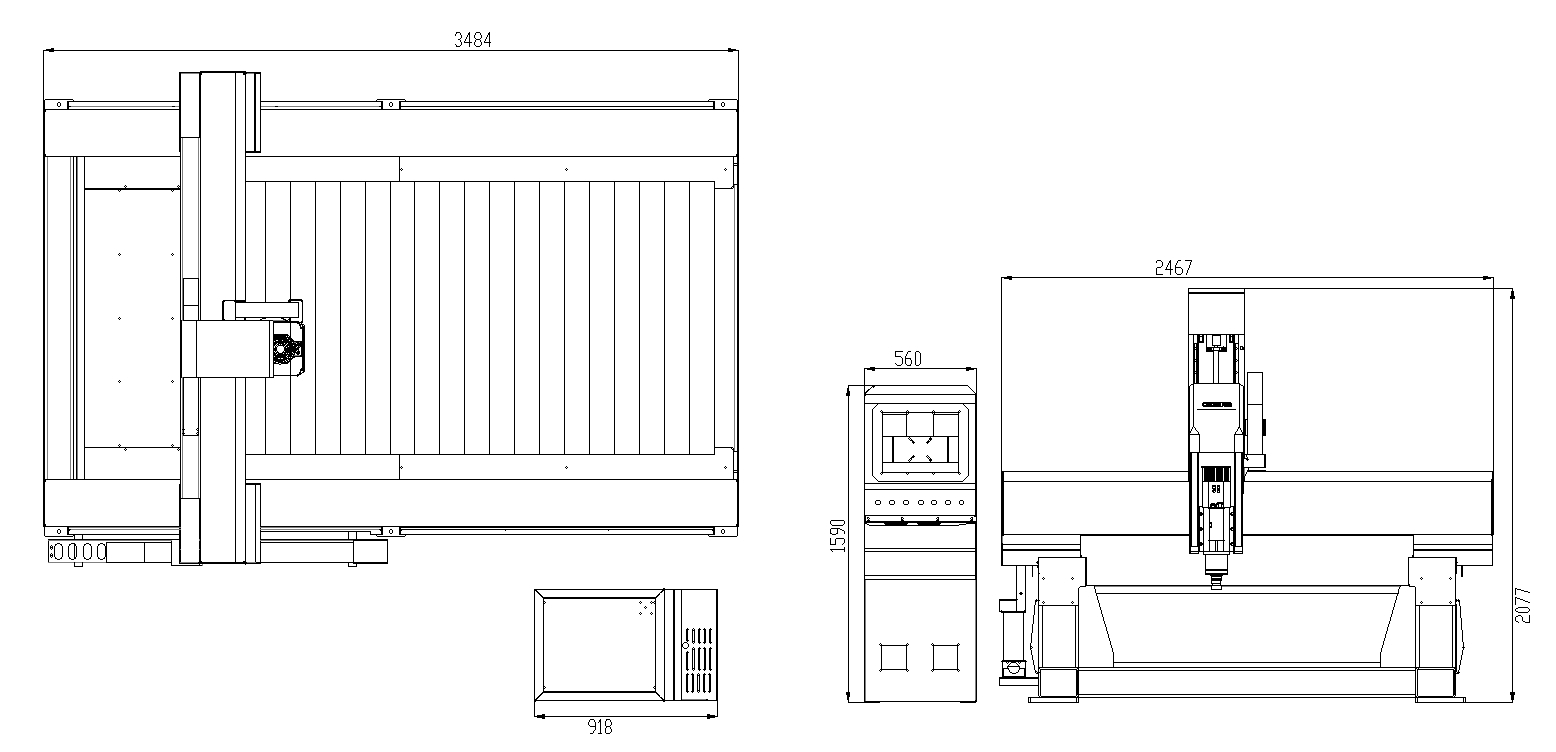

High Precision EPS CNC Router 3D Carving Relief Multi Material Images
|
